FURUNO MARINE RADAR

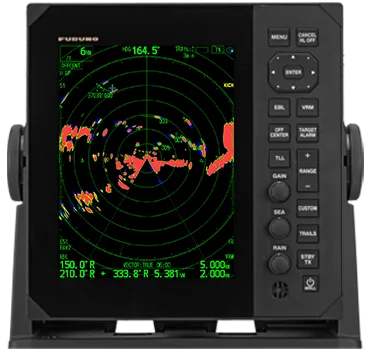

Navigate Safely By Identifying Risks The 10.4” FR-10 and 12.1” FR-12 are Marine displays that can be freely combined with a Furuno’s extensive DRS Series Antenna to meet a wide variety of needs. These Radars feature the latest technologies such as Risk Visualizer™, Echo Average, Target Analyzer™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, and Multi-language support. Specifications Antenna Peak Output Power Depending on the selected Antenna Unit (See DRS Antennas) Type Compatible Antenna Unit: DRS4DL+, DRS4DL*/4D*/6A/12A/25A X-Class, DRS2D/4D/6A/12A/25A-NXT * The DRS4D/4DL X-Class does not comply with RED, UKCA or ISED regulations. Range Scales 0.0625 to 36 NM (DRS4DL+, DRS4DL X-Class) 0.0625 to 48 NM (DRS4D X-Class, DRS2D/4D-NXT) 0.0625 to 72 NM (DRS6A-NXT) 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Display Unit 10.4-inch Color LCD 12.1-inch Color LCD Display Modes Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions Risk Visualizer™ Target Analyzer™ (DRS-NXT Radar Sensors only) Fast Target Tracking™ True Echo Trail Echo Average Sub Display Unit (2 units max) Bird Morde (Excluding DRS4DL X-Class, DRS4DL+) AIS Display Radar Overlay on Charts (FR-12: Option) Power Supply Power Supply/Consumption Current FR-10: 12-24 VDC: 1.1-0.6 A FR-12: 12-24 VDC: 1.7-0.9 A
