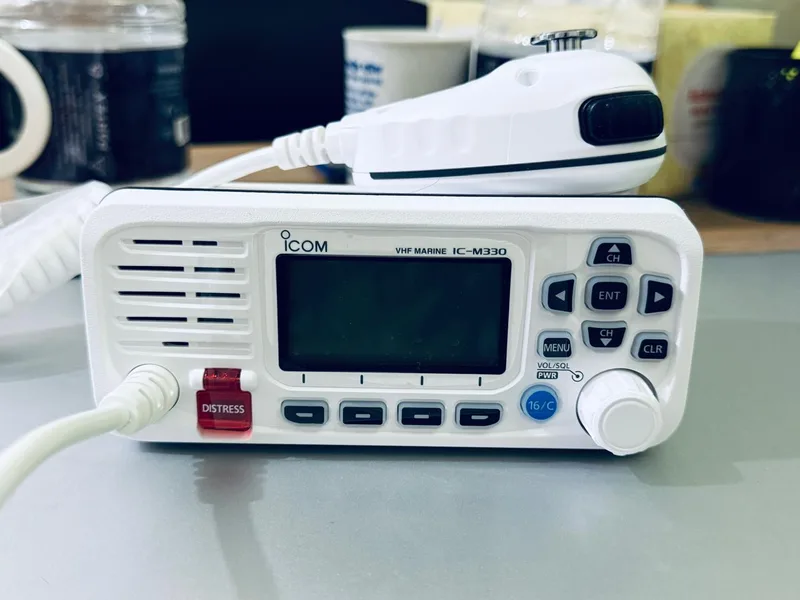

ICOM Japan Global TOP Products Marine Marine VHF Fixed Mount IC-M330G/IC-M330 VHF MARINE TRANSCEIVERS IC-M330G IC-M330 Top Performance Ultra Compact VHF (With GPS Receiver) IC-M330G (Without GPS Receiver) IC-M330 Features Specifications Optional Accessories Support / Download Open Features Specifications Optional Accessories Support / Download Open General Frequency range TX 156.025–161.600 MHz RX 156.050–163.275 MHz CH70 156.525 MHz Usable channels USA, CAN, INT, WX channels Type of emission 16K0G3E (FM), 16K0G2B (DSC) Power supply requirement 13.8V DC nominal (11.7-15.9 V DC) Current drain (at 13.8 V DC) TX 25 W output 5 A RX AF max. 1 A Operating temperature range -20°C to +60°C; -4°F to +140°F Antenna impedance 50 Ω (SO-239) Dimensions (W×H×D) (projections not included) 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in Weight (approx.) 730 g; 1.6 lb NMEA formats In RMC, GGA, GNS, GLL, VTG Out DSC, DSE, RMC, GSA, GSV You can scroll Transmitter Output power (at 13.8 V DC) 25 W, 1 W Max. frequency deviation ±5 kHz Frequency tolerance ±5 ppm Spurious emissions Less than -70 dBc (High) Less than -56 dBc (Low) You can scroll Receiver Sensitivity Main -13 dBμ typ. (12 dB SINAD) DSC -5 dBμ emf typ. (1% BER) Squelch sensitivity Less than -10 dBμ Adjacent channel selectivity Main More than 70 dB DSC More than 73 dBμ emf (1% BER) Spurious response Main More than 70 dB DSC More than 73 dBμ emf (1% BER) Intermodulation Main More than 70 dB DSC More than 68 dBμ emf (1% BER) Hum and noise More than 40 dB Audio output power (at 10% distortion, 4 Ω load) 4.5 W typical Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation. You can scroll Applicable IP Rating Ingress Protection Standard Water IPX7 (Waterproof protection) You can scroll Supplied Accessories HM-235B/W hand microphone DC power cable Mounting bracket kit GPS antenna (5 m; 16.4 ft cable)* * Only for the IC-M330G.
